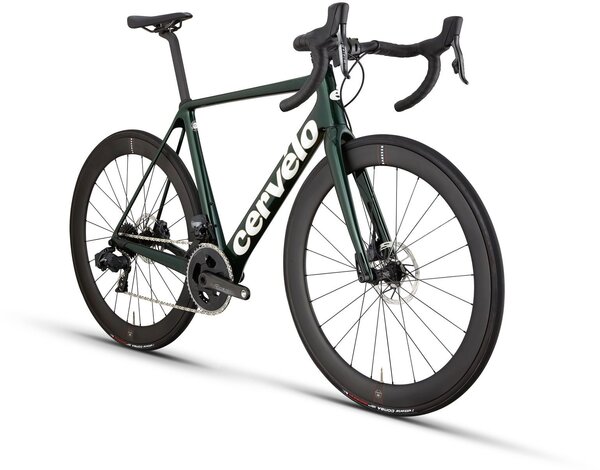

Cervelo R5 Disc Force eTap AXS

Cervelo R5 Disc Force eTap AXS
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check future availability.

Details

The R5 is engineered to help you achieve glory—whatever that is for you. World Tour riders praise its unrivaled stiffness, light weight, and stable handling. This bike isn’t only for the pros, though—the ultimate all-around ride experience is here for you.

The R5 sits at the top of the road category with a frame fine-tuned for greater speed. Our Pro Fit geometry offers a more aerodynamic position and prioritizes stability and handling at even higher velocities. It’s a reference for stiffness and weight in this category yet retains the ride quality you need to stay fresh on the biggest of days.

Squoval Max
Squoval Max tubes are part of a library of tube shapes that combine the attributes of a square with an oval but with a more aerodynamic leading edge. With these unique shapes, we dial in the ideal balance of stiffness and weight in specific areas of a frame, while reducing aerodynamic drag.

Pro Fit
Cervelo’s Pro Fit offers our lowest frame stack heights to enable an aerodynamic riding position. The Pro Fit is the direct result of input from our pro racers who wanted to get their handlebars as low as possible for maximum aerodynamic advantage.

BBRight
Cervelo developed BBright to take advantage of the fact that oversized frame tubes are stiffer and lighter. With the BBright system, larger-sized tubes are used in the seat tube, down tube, and left-hand chainstay. The benefit is increased stiffness and pedaling efficiency in a lighter weight frame. BBright is compatible with all major crank standards.

- R5 full carbon frame and fork
- SRAM Force eTap AXS drivetrain
- Reserve 50mm carbon rims / DT370 hubs
- Cervelo carbon cockpit
- SRAM Force HRD brakes

Electronic drivetrain systems deliver excellent shifting, easy set up, and solid battery life. Here are the highlights of today’s electronic shifting systems:

Shifting Performance
Electronic shifting systems use powerful servomotors to rapidly shift the chain. Because microprocessors and sensors constantly monitor every aspect of the system, they shift with precisely and without chain rub.

Customization
Many major systems have customizable shifting. Some have the ability to add remote shifters for common riding positions, and some even allow you to change the functions of the shifting buttons.

Dependability
Electronic groupsets are responsive and consistent. There are no cables to stretch and wear out, so you get a flawless shift every time. The added bonus is you’ll never have to replace a derailleur cable ever again.

Specs

Frame R5 Disc Carbon
Fork Cervélo All-Carbon, Tapered R5 Fork for Disc
Headset FSA IS2 1-1/8 x 1-1/2
Axles Front: 100 x 12mm thru-axle
Rear: 142 x 12mm thru-axle
Rims/Wheels Reserve 50mm DT370 XDR, 20h (F), 24h (R), 21mm IW, Center Lock, Tubeless Ready
Tires Vittoria Corsa TLR G 700c x 25
Crankset SRAM Force AXS
Chainrings 48/35T
Bottom Bracket SRAM DUB
Chain SRAM Force, 12 spd
Front Derailleur SRAM Force eTap AXS 12 spd
Rear Derailleur SRAM Force eTap AXS 12 spd
Cassette/Rear Cogs SRAM Force 12s XG1270, 10-28T
Shifters SRAM Force eTap AXS HRD 12 spd
Handlebars Cervélo AB06 Carbon
Stem Cervélo C026 Carbon
Brakes SRAM Force HRD w/SRAM Paceline 160mm rotors
Saddle Fizik Vento Argo R5
Seat Post Cervélo SP18 Carbon D-Post
Accessories & Extras Cervelo Faceplate Front Computer/Accessory Mount, Cervelo Rear Accessory Mount

* Subject to change without notice.
